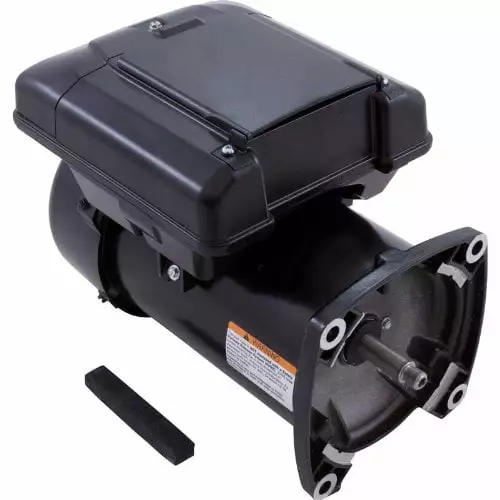

A.O. Smith ECM16SQU 1.65HP 230V Variable Speed Pool Motor Pump Square Flange
Installation on most pumps regardless of manufacturer is as simple as replacing a standard single speed motor. with no additional wiring or plumbing required thanks to the V-Green motor’s integrated user interface. Equipped with digital inputs. the V-Green 165 motor is even compatible with third party pool automation systems.
Features:
- Integrated User Interface
- Timer Mode
- Manual Mode
- Freeze Protection
- Noise Reducing Design
- Factory Default Settings Reset
- TEFC
- Single Phase
- Schedule Advance
- Full Variable Speed (600-3450 RPM)
- ECM Design
- Program Memory Back-Up
- 303 Stainless Steel Shaft
- Class F Insulation
- 50 C Ambient
- UV and Rain-Proof Enclosure
- Keypad Lockout
- Digital Inputs for Third Party Automation
Specifications:
- Voltage: 230v
- Frame Type: 48Y
- Speed: Variable-spd
- Horsepower: 0.5hp-1.65hp
- Total Horsepower: 1.65thp
- Motor Shaft Type: Threaded
- Motor Style: Square Flange
- Service Factor: 1.0
Specifications
| Brand | A. O. Smith |
| Manufacturer Part Number | ECM16SQU |
| Manufacturer | A.O. SMITH |
| Assembled Product Dimensions (L x W x H) | 16.00 x 13.00 x 11.00 Inches |
